Blowout sale.

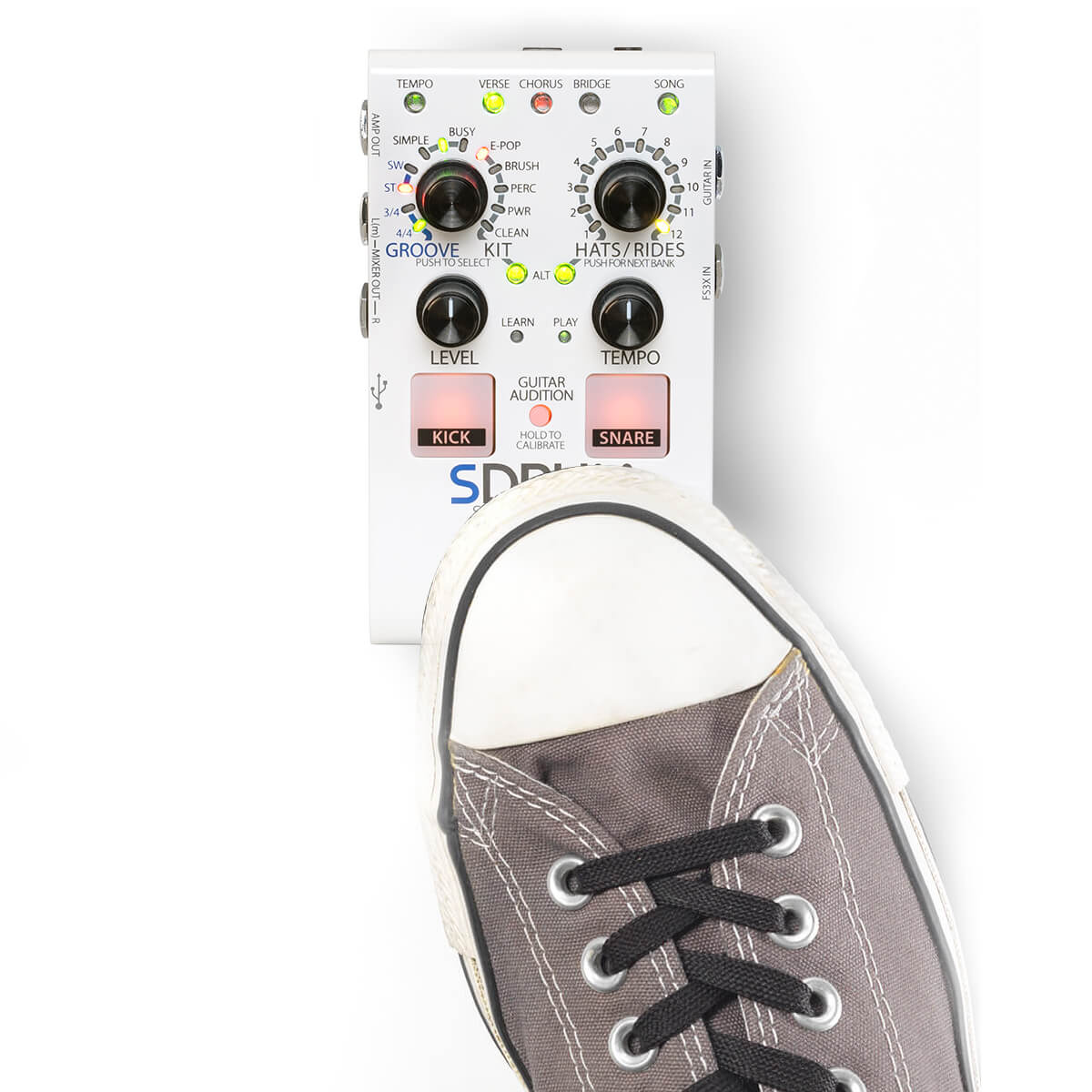

Practicing guitar is more effective (and more fun) when you have something to play along with. Unfortunately, by the time you program your drum machine or sequencer, your inspiration is gone. DigiTech's SDRUM solves this dilemma. Simply dream up a groove, bang out a couple of bars on your guitar, and the SDRUM's BeatScratch technology will build a full drum accompaniment based on your performance. SDRUM leaves plenty of room for customization, with control over tempo, intensity, grooves, and sounds. You also get pads on the front panel for inputting patterns manually. Creating drum parts on-the-fly has never been easier than this!

BeatScratchâ„¢ Technology

BeatScratchâ„¢ Technology lets you teach the SDrum a drum pattern by strumming your strings.

Groove / Kit Knob

Select between 5 different kits, 3 different embellishment levels (simple to busy), and various groove styles and time signatures to customize the drumbeats.

Learns up to 3 different song parts

3 parts per song each with 3 different intensities for realistic transitions from Verse to Chorus to Bridge.

General Specifications:

• Controls: Groove/Kit, Hats/Rides, Level, Tempo
• Backlit Buttons: Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition
• Pads: Kick, Snare
• Footswitches: Main Footswitch
• LEDs: Learn, Play
• Jacks: Guitar In, FS3X In, Amp Out, Mixer Out L(m), Mixer Out R, JamSync Out
• Other: Mini USB port

Inputs:

• Guitar Input:
  • Type: Unbalanced, 1/4" TS
  • Impedance: 1 M?
  • Max Input: +8 dBu
• FS3X Input:
  • Type: 1/4" TRS (compatible with DigiTech FS3X)

Outputs:

• Amp Output:
  • Type: Unbalanced, 1/4" TS
  • Impedance: 1 k?
  • Frequency Response: 20 Hzâ€"20 kHz
• Mixer L/R Outputs:
  • Type: Impedance balanced, 1/4" TRS
  • Impedance: 1 k?
  • Max Output: +19 dBu
  • Frequency Response: 20 Hzâ€"20 kHz
• JamSync Outputs:
  • Type: 1/8" TRS

Performance:

• Bit Depth: 24-bit
• Sample Rate: 44.1 kHz
• Signal-to-Noise Ratio: ?108 dB, A-weighted
• THD + Noise: 0.004% @ 1 kHz

Storage:

• Maximum Bars: 4 bars per song part
• Maximum Parts: 3 per song
• Maximum Songs: 36

USB:

• Type: Mini-B, USB 2.0

Physical:

• Dimensions: 5.25†(L) x 3†(W) x 2.45†(H) / 133.4 mm (L) x 76.2 mm (W) x 62.2 mm (H)
• Unit Weight: 1.14 lb / 0.52 kg
• Shipping Weight: 1.92 lb / 0.87 kg

Power:

• Power Requirements: 9 VDC external power adapter
• Power Consumption:
• Current Draw: 500 mA
• Power Adapter Model: PS0913DC-04 (US, JA, EU, AU, UK)
• Power Adapter Output: 9 VDC 1.3 A
